Shielded Camera LINEUP

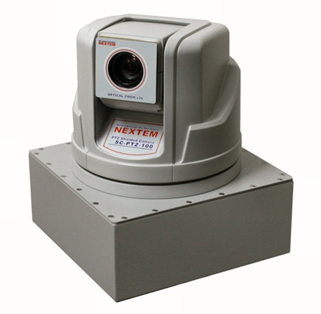

SC-PTZ-130 |
SC-PTZ-120 |

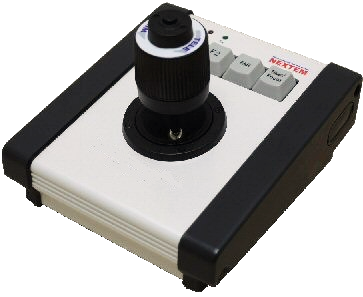

SC-PCR-100 |

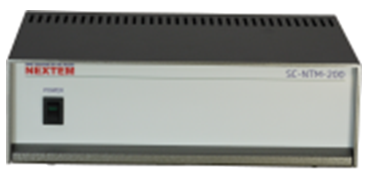

SC-NPTM-110 |
Optical fiber cable |
|---|---|---|---|---|
 |
 |
 |
 |
|
This camera system is desinged to be used for monitoring the behaviour of the customer's EUT under immunity testing.
The camera part is electromagneticaly shielded, so that it can be used inside shielded room or anechoic chamber under high electric field.
The image is transfered to the monitor outside the shielded or the anechoic chamber through optical fiber cable and is decoded by the electric/optical converter terminal unit.
Applications |
|---|
Monitoring of EUT during immunity testing |
Monitoring of EUTs inside anechoic chambers/shielded room |
Features |
|---|
Clear and high resolution image |
Pan, Tilt and Zoom can be controled remotely from outside the room |
Signal is electrically isolated thanks to optical fibre |
SPECIFICATIONS
SC-PTZ-130 |
SC-PTZ-120 |
|
|---|---|---|
Environmental specification |
||
Power |
AC85-132V 50/60Hz |
AC85-132V 50/60Hz |
Temperature tolerance |
0℃〜40℃ (operating) |
0℃〜40℃ (operating) |
Humidity tolerance |
30%〜90% (relative) |
30%〜90% (relative) |
Immunity to electric field |
100V/m |
100V/m |
Camera Specification |
||
Signal terminal |
Video/Control |
Video/Control |
Image device resolution |
0.52 million pixels |
0.52 million pixels |
Horizontal resolution |
700 TV lines |
700 TV lines |
Least object illuminance |
0.7 lux (typical) |
0.7 lux (typical) |
Zoom |
x36 (optical) |
x12 (optical) |
Video signal format |
NTSC or PAL (select before purchase) |
NTSC or PAL (select before purchase) |
PTZ camera platform |
||
Operation angle |
Vertical: -45 to +90 deg |
Vertical: -45 to +190 deg |
Horizontal: Endless |
Horizontal: Endless |
|
Moving speed (no load condition) |
Vertical: 60 deg/sec |
Vertical: 35 deg/sec |
Horizontal: 100 deg/sec |
Horizontal: 110 deg/sec |
|
External dimensions (Camera platform incl.) |
220(W)mm x 243(H)mm x 220(D)mm |
127(W)mm x 230(H)mm x 136(D)mm |
Weight |
7kg (incl. camera platform) |
4kg (incl. camera platform) |

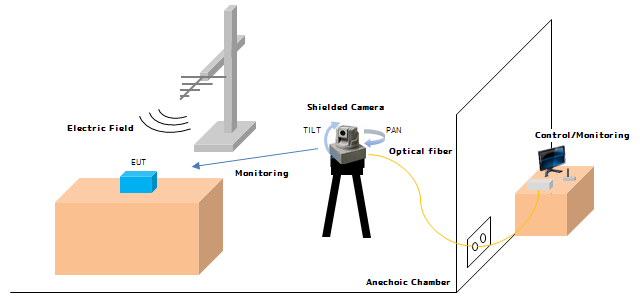

SYSTEM DIAGRAM
 |
