COMB GENERATOR - COM-POWER CORPORATION(USA)
Comb Generators are used as "daily checker" or "site reference" sources for EMI test sites. For every EMC test site it is not easy to validate
the measurement environment including antennas, cable losses, reflectivity, ground plane... etc.
Comb generators make those situation better. They work as "reference noise source" where the spectrum and signal amplitude are stable during its use.
We have both radiation and conducted comb generators for different purposes such radiated emission and conducted emission measurement, respectively.
Model CG-515 is specified by AEMCLRP for getting approval as A2LA.

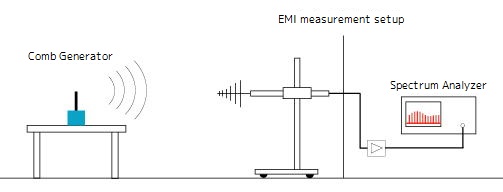

RADIATED EMISSION

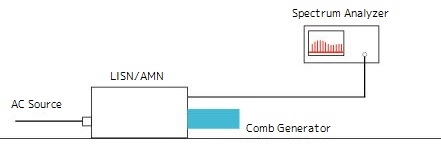

CONDUCTED EMISSION
Product Lineup
Model |
Frequency Step (MHz) |
Frequency Range (MHz) |
Mode (Radiated/Conducted) |
DataSheet/Picture |
|
|---|---|---|---|---|---|
CGO-501 |
1 |
1 - 1000 |
Radiated |
Data Sheet |
|
CGO-505 |
5 |
5 - 1500 |
Radiated |
Data Sheet |
|
CG-515 |
5 / 1 |
1 - 1500 |
Radiated |
Data Sheet |
|
CGO-515 |
5 / 1 |
1 - 1500 |
Radiated |
Data Sheet |
|
CGO-520 |
20 |
20 - 4500 |
Radiated |
Data Sheet |
|
CGO-5100A |
100 |
1000 - 18000 |
Radiated |
Data Sheet |
|
| new | CGO-51000 |
1000 |
1000 - 34000 |
Radiated |
Coming Soon |
CGC-510 |
0.1 / 0.5 |
0.1 - 30 |
Conducted |
Data Sheet |
|
CGC-255 |
0.05 / 0.25 |
0.05 - 30 |
Conducted |
Data Sheet |
Caution)
In the CG-515 datasheet, CG-501/CG-505/CG-520 are out of coverage because of manufacturing has been discontinued.
The new models are CGO-501/CGO-505/CGO-520
CG-515 |
CGC-510/255 |
CGO Series |
|---|---|---|
 |
 |
 |
Please contact us from here for more details.
