RF switch system

RF switch system is designed to switch RF pathes directly or remotely.
When switching Spectrum Analyzer to EMI test receiver, a 2-way switch system is useful. Our switch system can also have multi-input multi-output system to match customer use.


Model#

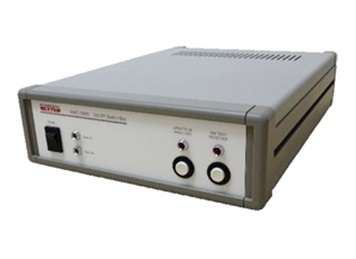

EMC-3003

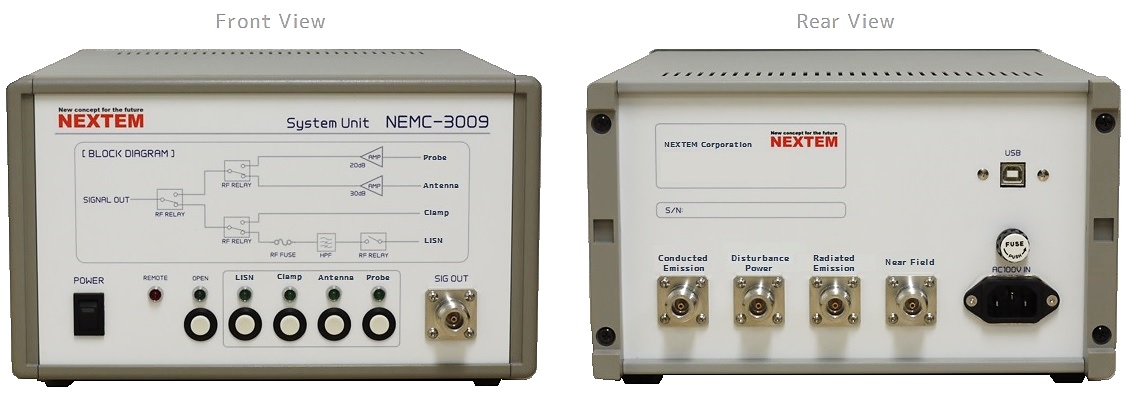

NEMC-3009

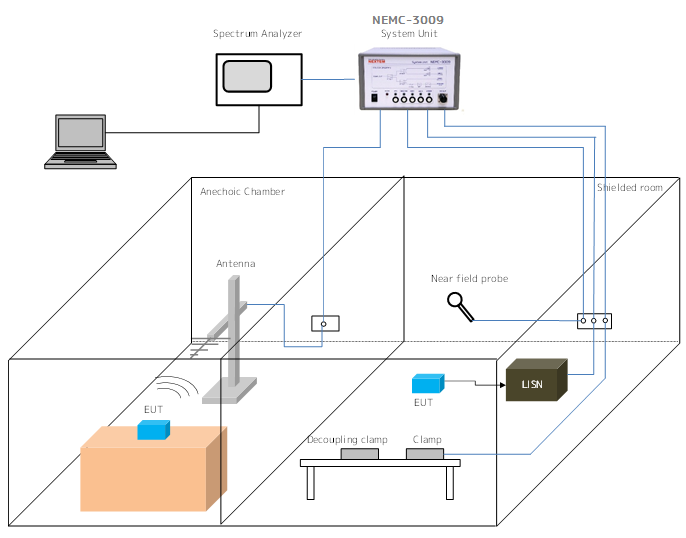

Connection example

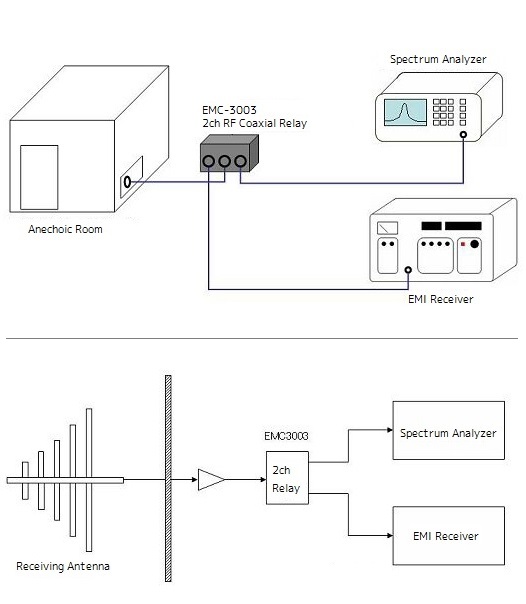

Example

Example

Name

2-channel RF coaxial switch

4-path System Switch Unit
with built-in preamplifier and filters

Feature

2-path RF relay built-in type

Suited for both conducted and radiated EMI testing

RF path

1 input (rear panel)
2 output (rear panel)

4 input (rear panel)
1 output (front panel)

Options

Optical link

USB port

Frequency

DC - 1GHz

DC - 1GHz

Connector type

SMA type (at rear panel)

N type (at front/rear panel)

Impedance

50 Ohm

50 Ohm

Isolation

85dB (DC - 1GHz)

85dB (DC - 1GHz)

Power supply

100 - 240VAC

100 - 240VAC
