RS 16

Biconical Antenna

Virtically polarised biconical antenna (omnidirectional at H-plane) Max 50W input

(0.5)1.0 - 6.0(8.5)GHz

RE 1790

Biconical Antenna

Virtically polarized biconical VHF-UHF antenna (omnidirectional at H-plane) Max 200W input

(170)230 - 1000(1100)MHz

RE 4590

Biconical Antenna

Virtically polarized biconical VHF-UHF atenna (omnidirectional at H-plane) Max 200W input

(330)450 - 1000(1100)MHz

SBA 9113

Small Biconical Antenna

CIS/A/648/CDV CISPR 16-1-4 sVSWR measurement Max 20W input Mini Version on request

0.5 - 3GHz

SBA 9112

Small Biconical Antenna

CIS/A/648/CDV CISPR 16-1-4 sVSWR measurement Max 10W input, incl. carry caseMini Version on request

(1)3 - 18GHz

SBA 9119

Small Biconical Antenna

CIS/A/648/CDV CISPR 16-1-4 sVSWR measurement Max 20W input, incl. carry case

(0.5)1 - 6(7)GHz

UBA 9116

Biconical Antenna

Biconical UHF broadband antenna, Max 5W input

(160)300 - 1000(1100)MHz

VUBA 9117

Biconical Antenna

Biconical VHF-UHF antenna, Max 5W input

(30)150 - 1000MHz

BBA 9106

Biconical element

Applicable antenna holder: VHA 9103 B, VHBC, VHBB, VHBA

30 - 300MHz

BBAL 9136

Biconical element

Applicable antenna holder: VHA 9103 B, VHBC, VHBB, VHBA

20 - 200MHz

BBAK 9137

Biconical element

Applicable antenna holder: VHA 9103, VHBB, VHBA

45 - 450MHz

BBVK 9138

Biconical element

Applicable antenna holder: VHA 9103, VHBB, VHBA

60 - 600MHz

BBVU 9135

Biconical element

Applicable antenna holder: UBAA 9114/9115

(30)100 - 1000MHz

BBUK 9139

Biconical element

Applicable antenna holder: UBAA 9114/9115

160 - 1200MHz

BBFA 9146

Collapsible
Biconical element

Collapsible element (maximum 4m extention)

FBAB 9177

Collapsible
Biconical element

Collapsible biconical element

30 - 300MHz

FBAL 9178

Collapsible
Biconical element

Collapsible biconical element

20 - 200MHz

BAOC 9216

Open biconical element

Open biconical element (Applicable antenna holder: UBAA 9114/9115)

160 - 1200MHz

BBOC 9217

Open biconical element

Open biconical element (Applicable antenna holder: UBAA 9114/9115)

(30)100 0 1000MHz

VHA 9103 B

Antenna holder/balun

Antenna holder/balun
Applicable element: BBA9160, BBAL9136, BBAK9137, BBVK9138

HFBA 9122

Antenna holder/balun

HF-VHF wideband balun
Applicable element: BBAL9136, BBA9106, BBAK9137, BBVU9135, BBUK9139

0.15 - 300MHz

VHBA 9123

Antenna holder/balun

For biconical antenna, 1:4 (50:200 Ohm)
Applicable element: BBA9160, BBAL9136, BBAK9137

VHBB 9124

Antenna holder/balun
High symmetry

Antenna holder/balun, 1:4 (50:200 Ohm)
High symmetry, Max 10W input
Applicable element: BBA, BBAL, BBAK, BBVK

25 - 300MHz

VHBC 9133

Antenna holder/balun

Antenna holder/balun, 1:4 (50:200 Ohm)
Max 1kW input
Applicable element: BBA, BBAL, BBFA, Triangle, FBAA, FBAB

VHBD 9134

Antenna holder/balun

High power antenna holder/balun,
1:4 (50:200 Ohm), 2.5kW input

20 - 200MHz

Opt. 7/16

Transition connector

For VHBD9134, high power 7/16 connector
(order with VHBD 9134)

VHBD 9134-4

Antenna holder/balun

4 kW high power antenna holder/balun
1:4 (50:200 Ohm), for BBAL 9136 or BBFA 9146
7/16-female connector

20 - 200MHz

UBAA 9114

Antenna balun/holder
Low loss

Wideband balun/holder, 5W input, low loss,
Applicable element: BBVU, BBUK, BAOC, BBOC

30 - 1000MHz

UBAA 9115

Antenna balun/holder
High symmetry

Wideband balun/holder, 5W input, High symmetry
Applicable element: BBVU, BBUK, BAOC, BBOC

30 - 1000MHz

UHALP 9108 A

Log-periodic antenna

Low loss, Max 1kW input

250 - 2400MHz

VUSLP 9111

Log periodic antenna

Low loss, Max 1kW input

200 - 2300(4000)MHz

VUSLP 9111 B

Log periodic antenna

Low loss, Max 1kW input

(180)200 - 3000(4000)MHz

VUSLP 9111 E

Log periodic antenna

Max 1kW input,
recommended adapter: KG 9201

(65)70 - 3000(4000)MHz

VULP 9118 A

Log periodic antenna

Max 1kW input

180 - 1500(2000)MHz

VULP 9118 B

Log periodic antenna

Max 1kW input

160 - 1500(2000)MHz

VULP 9118 C

Log periodic antenna

Max 1kW input

100 - 1400(2000)MHz

VULP 9118 D

Log periodic antenna

Max 1kW input

(80)95 - 1500MHz

VULP 9118 E

Log periodic antenna

Max 1kW input

(50)75 - 1500MHz

VULP 9118 F

Log periodic antenna

Max 1kW input

55 - 1800MHz

VULP 9118 G

Log periodic antenna

Max 1kW input

45 - 1500MHz

VULP 9118 D/E/F/G special

Log periodic antenna
Special specification

VULP 9118 D/E/F/G, shortened element models

VULP 9118 H

Log periodic antenna

Max 1kW input, 6dBi, VSWR=3, 5.2m X 4.8m, 35kg

(26)30 - 1500(1800)MHz

Opt. WP

Special coating for outdoor usage

USLP 9142

Log periodic antenna

UHF - SHF log periodic antenna, Max 50W input

0.7 - 5(8)GHz

USLP 9143

Log periodic antenna

UHF - SHF log periodic antenna. Max 50W input

(0.25)0.3 - 5(7)GHz

USLP 9143 B

Log periodic antenna

UHF - SHF Log periodic antenna, Max 50W input

(0.18)0.2 - 7(8)GHz

ESLP 9145

Log periodic antenna

UHF - SHF Log periodic antenna, Max 20W input

(0.7)1 - 18(20)GHz

XSLP 9142

Dual-polarized Log periodic antenna

UHF - SHF Log periodic antenna, Max 50W input

0.8 - 3(5)GHz

XSLP 9143

Dual-polarized Log periodic antenna

UHF - SHF Log periodic antenna, Max 50W input

0.3 - 3(5.5)GHz

VULB 9160

Bi-log antenna

Ultra wideband Bi-log antenna, Max 10W input

(25)30 - 1000(1700)MHz

VULB 9161

Bi-log antenna

Ultra wideband Bi-log antenna, Max 1kW input

30 - 1000(2000)MHz

VULB 9161 SE

Bi-log antenna

Ultra wideband Bi-log antenna, Triangle element shortened modelm Max 1kW input

30 - 1000(2000)MHz

VULB 9163

Bi-log antenna

Ultra wideband Bi-log antenna, Max 100W input

(25)30 - 3000(4000)MHz

VULB 9165

Bi-log antenna

Ultra wideband Bi-log antenna,
BBAL element used, Max 10W input

(20)30 - 1500(2000)MHz

VULB 9166

Bi-log antenna

Ultra wideband Bi-log antenna,
BBAL element used, Max 1kW input

20 - 1500MHz

VULB 9168

Bi-log antenna

Ultra wideband Bi-log antenna, Max 10W input

(25)30 - 1000(2000)MHz

Opt. Triext.

Bi-log antenna option

For VULB9163, VULB9161, VULB9161 SE
Expanded gain option (+6dB / ~70MHz)

~70MHz

BBHA 9120 A

Broadband Horn Antenna

Broadband Horn Antenna, 300W(500W peak)input, N connector

(0.8)1 - 5(10)GHz

BBHA 9120 B

Broadband Horn Antenna

Broadband Horn Antenna, N connector

1 - 10GHz

BBHA 9120 C

Broadband Horn Antenna

Broadband Horn Antenna, 50W(100W peak) input, SMA connector

2 - 18(20)GHz

BBHA 9120 D

Broadband Horn Antenna

Broadband Horn Antenna, 300W(500W peak) input, N connector

(0.8)1 - 18GHz

BBHA 9120 E

Broadband Horn Antenna

Broadband Horn Antenna, N connector

0.5 - 6GHz

BBHA 9120 F

Broadband Horn Antenna

Broadband Horn Antenna, N connector, 1.5kW@200MHz/0.5kW@2GHz

0.2 - 2GHz

Opt. 7/16

Transition connector option

High power 7/16" transition connector, 3kW input

BBHA 9120 G

Broadband Horn Antenna

Broadband Horn Antenna, 7/16" connector, 3kW@400MHz/1.5kW@2GHz

0.4 - 2.8GHz

BBHA 9120 LF

Broadband Horn Antenna

Broadband Horn Antenna, N connector

0.7 - 6GHz

BBHA 9120 L3F

Broadband Horn Antenna

Broadband Horn Antenna, N connector

0.5 - 2.8GHz

BBHA 9170

Broadband Horn Antenna

Broadband Horn Antenna, SMA connector

15 - 26.5(40)GHz

HA 9250-48

Standard Gain Horn Antenna

Standard Gain Horn Antenna, 7/16" connector,
1kW@4GHz/0.5kW@8GHz, Typ.gain 20dBi

4 - 8GHz

BBHX 9120 E

Dual-polarized wideband horn antenna

Dual-polarized wideband horn antenna,
N connector, Max 200W input

0.4 - 10GHz

STLP 9128 C

Stacked Log-periodic Antenna

Typ.gain 9dBi, Max 1kW input

(150)200 - 1500(4000)MHz

Opt. 7/16

Transition connector option

For high power 7/16 transition connector, Max 3kW input

Opt. 13-30

Transition connector option

High power 13-30 connector, Max 8kW input

~2500MHz

STLP 9128 D

Stacked Log-periodic Antenna

Typ. gain: 9 dBi, N-connector,
for quick removal of the rear parts of the antenna

80 - 3000(4000)MHz

STLP 9128 D Opt. 7/16

Transition connector option

Option: with 7/16-connector 3 kW

STLP 9128 D special

Stacked Log-periodic Antenna

Like STLP 9128 D, with folded longest elements and smaller structure angle

STLP 9128 E

Stacked Log-periodic Antenna

Typ.gain 9dBi, Max 1kW input

(65)80 - 1500(3000)MHz

Opt. 7/16

Transition connector

High power 7/16 transition connector, Max 3kW input

STLP 9128 E special

Stacked Log-periodic Antenna (special spec.)

STLP 9128E, element width shortened model

Opt. 7/16

Transition connector option

High power 7/16 transition connector, Max 3kW input

STLP 9148

Stacked Log-periodic Antenna

Typ.gain 9dBi, Max 50W input

(0.7)1.0 - 18(20)GHz

STLP 9149

Stacked Log-periodic Antenna

Stacked double Log.-Per. Antenna
For IEC 61000-4-3
Typ. gain 10.3 dBi, N-connector female.

(0.6)0.7 - 9(10.5)GHz

STLP 100-500

Stacked Log-periodic Antenna

Typ.gain 11dBi, 13/30 connector, Max 5kW input, 52kg

(75)100 - 500(550)MHz

VHA 9103

Dipole antenna

Half wave VHF dipole antenna, 2 sets of telescopic element, Max 10W input

30 - 300MHz

UHA 9105

Dipole antenna

Half wave VHF dipole antenna, telescopic element, Max 10W input

300 - 1000MHz

UHA 9125 C

Dipole antenna

Half wave VHF dipole antenna, with EMI balun, telescopic element (4 sets)

0.75 - 2GHz

UHA 9125 D

Dipole antenna

Half wave VHF dipole antenna, with EMI balun, telescopic element (6 sets)

1 - 3(4)GHz

VHAP

Precision dipole antenna

VHF precision dipole antenna,
telescopic antenna (2 sets),
Acc. CISPR 16-1-5

30 - 300MHz

UHAP

Precision dipole antenna

UHF precision dipole antenna, telscopic element (2 sets), Acc. CISPR 16-1-5

300 - 1000MHz

CCA

Carry case

For VHAP 2sets, UHAP 2sets

VHAPA

Calibration adapter

Calibration adapter for VHAP

UHAPA

Calibration adapter

Calibration adapter for VHAP

VAMP 9243

Active rod antenna

Vertical active rod antenna, BNC connector,
low noise floor, rechargeable, AM9144 nut incl.

9kHz - 30MHz

Opt. GP

Option: Aluminum ground plane

0.6 x 0.6m, Aluminum ground plane

Opt. ACS 410

Option: Charger

Charger

VAMP 9243 Opt. VT

Option: Plug-in devider

20dB plug-in devider for high E-field measurement

EFS 9218

Active E-field probe

Biconical type active E-field probe, Min. E-field 12uV/m (F=30 MHz, IFBW=9 kHz, Average)

9kHz - 30MHz

Opt. ACS 410

Option: Charger

Charger

EFS 9219

Active antenna holder

high sensitivity (1 uV/m - 3 V/m), 9kHz - 30MHz, BBUK 9139 biconical elements required

EFS 9219 Opt. Rohr

Option

Isolating tube with braid chokes for EFS 9219

EFS 9219 Opt. ACS 410

Option: Charger

Charger

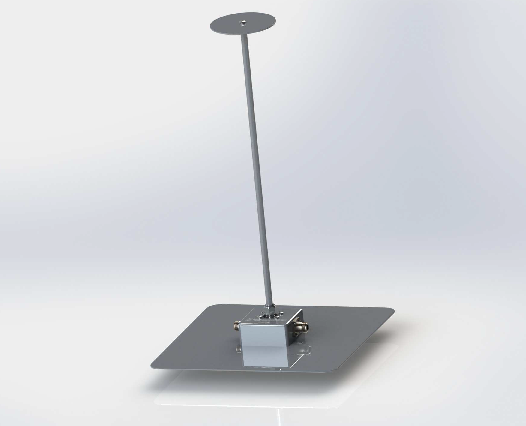

VPMP 9241

Passive rod antenna

Vertical passive rod antenna, BNC connector,
CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC)

DC-300MHz

Opt. TLD 9241

Option

Top loading disc for VPMP 9241
diameter smaller than 12cm

-

VPMP 9242

Passive rod antenna

Vertical passive rod antenna, BNC connector,
For FBAB 9177, FBAL 9178, BBA 9106, BBAL 9136

10 - 40(100)MHz

Opt. GP

Option

Ground plane for VPMP 9242 (0.6 x 0.6m)

-

HLX 0810-LHCP

Helical antenna

Left circular polarization, Gain 11dBic, N-connector

800MHz - 1000MHz

HLX 0810-RHCP

Helical antenna

Right circular polarization, Gain 11dBic, N-connector

800MHz - 1000MHz

CLSA 0110L

Log spiral antenna

Left circular polarization, Gain 2dBi, N-connector

1GHz - 10GHz

CLSA 0110R

Log spiral antenna

Right circular polarization, Gain 2dBi, N-connector

1GHz - 10GHz

HFRA 5148

Tx loop antenna

Diameter 180mm, 1turn

-

HFRA 5149

Tx loop antenna

Diameter 500mm, 50 Ohm 5W termination

9kHz - 30MHz

HFRA 5152

Tx loop antenna

Diameter 250mm, Max 1W input

0 - 3MHz

HFRA 5153

Tx loop antenna

Diameter 180mm, Max 5W input

0 - 20(30)MHz

HFRA 5154

Tx loop antenna

Diameter 100mm, Max 0.5W input, 2turns 50 Ohm

0.1 - 30MHz

HFRA 5155

Tx loop antenna

VHF-UHF loop antenna, Diameter 50mm, Max 0.5W input, 1turn, 50 Ohm

0.1 - 100MHz

HFRA 5156

Tx loop antenna

Diameter 50mm, Max 2W input, 10turn, 450 Ohm

0 - 5MHz

HFRA 5157

Tx loop antenna

Diameter 100mm, Max 3W input, 2turn, 450 Ohm

0 - 20(30)MHz

HFRA 5158

Tx loop antenna

Diameter 180mm, Max 5W input, 10turn, 450 Ohm

0 - 2MHz

HFRA 5159

Tx loop antenna

Diameter 250mm, Max 5W input, 28turn, 1260 Ohm

0 - 0.5MHz

HFRA 5170

Tx loop antenna

Diameter 100mm, Max 3W input, 1turn, 250 Ohm

0 - 30MHz

HFRA SF02G

Tx loop antenna

Tuneable resonant magnetic loop antenna
acc. to VG95373-13:2008-11 and VG95373-23:2008-11
incl. sensor loop HFRAE 5163 und control cable.

10kHz - 30MHz

HFRAE 5160

Rx loop antenna

VHF-UHF loop antenna, Diameter 50mm, BNC connector, 3/8" mount

1 - 300MHz

HFRAE 5161

Rx loop antenna

Diameter 100mm, 1turn, BNC connector, 3/8" mount

70kHz - 120MHz

HFRAE 5162

Rx loop antenna

Diameter 250mm, 1turn, N connector, 3/8" mount

50kHz - 30MHz

HFRAE 5163

Rx loop antenna

Diameter 50mm, 1turn, passive loop

9kHz - 300MHz

HXYZ 9170

3-dimensional loop antenna

Accd. EN 55015/CISPR 15,
measurement of radiated magnetic field,
diameter 2m

Socket for HXYZ 9170

Option

For HXYZ 9170 socket and mount

Coaxial Switch for HXYZ 9170

Option

HXYZ 9170, Coaxial switch (manual/remote operation), Cable set with BNC connector

HFCD 9171

Option

HXYZ 9170 Calibration balun/dipole (AM 9144 antenna mast necessary)

CDA 9271

Option

Adapter to hold HFCD 9171 on AM 9144,
3/8" female large camera thread

HMDA 1545

Active loop antenna

Loop antenna for magnetic field strength measurement, battery driven, LCD, Max 1A/m, Range: 46dBuA/m - 120dBuA/m

9kHz - 50(80)MHz

Opt. ACS 410

Option: Charger

Charger

HFS 1546

Active loop antenna

Magnetic loop antenna, battery driven, Range: -13.5dBuA/m - 105dBuA/m (F=30MHz, IFBW=9 kHz, Avg.-Det.)

Opt. ACS 410

Option: Charger

Charger

FMZB 1513

Active loop antenna

Active loop antenna for CISPR 16, NiMH battery, Antenna factor = 20dB/m, detatchable handle (L=180mm)

9kHz - 30MHz

Opt. ACS 110

Option: Charger

Chargr for FMZB 1513

Opt. 500 mm
Handle

Option: Handle

500mm extention handle for FMZB 1513 (glass fibre)

CCA 1513

Carry case

Carry case for FMZB 1513

FMZB 1519

Active loop antenna

Active loop antenna for CISPR 16, Antenna factor = 20dB/m, built-in battery charger

9kHz - 30MHz

FMZB 1527

Magnetic field probe

Diameter 150mm, connect to EMI test receiver, Max 0.4A/m, AF=40dB/m

9kHz - 30MHz

FMZB 1538

Magnetic field probe

EHMG1623/UEW9210, connect to EMI test receiver, Max 0.2A/m, (different from FMZB 1537, separated power cable)

9kHz - 30MHz

FMZB 1548

Magnetic field probe

Magnetic field meter, 20A/m, with separate power supply cable

9kHz - 30MHz

FT 01 S

FM/TV band antenna

Additional elements for enhanced FM broadcast directivity

47 - 860(1000)MHz

FT 01 UKW

FM/TV band antenna element

FM broadcast and TV bands antenna, detachable, 47 - 860 (1000)MHz, high directivity

NMHA

Immunity test antenna

Nissan and Renault antenna set to test immunity against handy transmitters acc. to Nissan specification 28401NDS02 [4] August 2008 and RENAULT 36-00-808/L 2010 (combined set) consisting of normal mode helical antennas, dipoles counterpoise and transport case (see extra list)

WAND0918

Immunity test antenna

Wireless Immunity Wand Antenna acc. to Dell Specification, SYSTEM IMMUNITY TO WIRELESS GSM TEST REQUIREMENT

800MHz - 2GHz

SGA

Standard Gain Antenna

Standard Gain Antennas, typ. 9.8 dBi gain, 60属 pattern, accurately calibrated (2 half-wave dipoles in front of a lambda x lambda reflector, design frequencies approx. 400-2800 MHz SGA 900 SGA 1800

AM 9104

Antenna Mast

Glass fibre antenna mast (manual scan sweep), scan hight 0.4 - 4m, 0/90deg polarization switchable, zinc plated/stainless steel foot

Opt. wheels

Option

Option: Caster Wheels and Brakes for zinc-plated / stainless steel 3-leg mast foot

Opt. GF

Option

Alternative Option: Non metallic (glass-epoxy) mast foot for AM 9104

AM 9144

Antenna Mast

Glass - Epoxy tube Antenna Mast System, height set by screw 1.2 - 2 m, 3/8" thread on top, zinc-plated / stainless steel 3-leg mast foot.

Opt. GF

Option

Glass epoxy mast foot for AM 9144

Opt. wheels

Option

Caster for antenna mast

Opt. short

Option

height set range from 0.90 - 1.60 m (shorter version)

AA 9202

Mast adapter

Mast Adapter for AM 9144 with 22 mm hole for most Antenna models, 3/8" and 1/4" camera threads, polarisation continuously adjustable.

AA 9202 POM

Mast adapter

Non metallic mast adapter for most light weight Antenna models with 22 mm tube, minimizes reflections, 3/8" camera thread, polarisation continuously adjustable.

AA 9203

Mast adapter

Mast Adapter for AM 9144 with 22 mm hole for most Antenna models, 3/8" and 1/4" camera threads polarisation and elevation continuously adjustable.

AA 9205

Mast adapter

Orthogonal Swivel Adapter for positioning in 3 perpendicular directions. Application: determination of the magnitude of the fieldstrength

KG 9201

Mast adapter

Mast Adapter (swivel, 90deg vertical/horizontal polarisation for AM 9144), for VULP 9118 D,E,F,G and VUSLP 9111 E only

AA 9209

Mast adapter

Antenna adapter to fix STLP 9128 E, STLP 9128 E special, STLP 9128 D, STLP 9128 D special on AM 9144. Alllows antenna rotation without height adjustment. Antenna can be fixed in the center of gravity without any collision with the AM 9144 during polarisation change.

RS 9214

Mast adapter

Adapter to convert the R&S Aluminium Flange into 22 mm tube with indexing ring.

SWHA 9204

Mast adapter

Swivel handle for light antennas

EA 9207

Mast adapter

Adapter for Schwarzbeck antennas with 22 mm tube on EMCO mast.

TA 9204

Tread transition adapter

Thread Adapter with 3/8" female and 1/4" male threads. Mainly for American antenna brands.

TA 9205

Tread transition adapter

TA 9205 Thread Adapter with 1/4" female and 3/8" male threads. (For camera tripods, not for AM 9144)

TA 9206

Tread transition adapter

Thread Adapter with 3/8" female and 5/8" male threads. (Geodesy)
