CISPR16-1-4 1GHz - 18GHz sVSWR Antenna


Under defenition of CISPR16-1-4, Schwarzbeck released 1GHz - 18GHz biconical antennas.


SBA 9113 SBA 9119 SBA 9112

Frequency

500MHz - 3GHz

1GHz - 6GHz

3GHz - 18GHz

Isotropic Gain

-1.5dBi to +1.5dBi (typical)

-4dBi to +3dBi (typical)

-4dBi to +3dBi (typical)

Antenna Factor

25 - 41dB/m

32 - 46dB/m

43 - 53dB/m

Typical VSWR

1 - 4

1.5 - 5

1.5 - 5

Max Input Power

20W

20W

10W

Half Value Angle (E-plane)

80°〜 50°

84°〜 45°

84°〜 45°

Weight

750g

500g

420g

Antenna Support
Diameter

22mm

22mm

22mm

Datasheet

Download

Download

Download



FORD EMC-CS-2009.1 Test Adapter

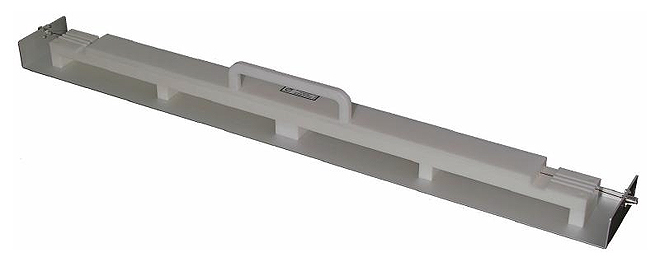

TF 130-150 FORD-CS-2009.1 Test Adapter (Schwarzbeck)

Wire support test adapter according to EMC-CS-2009.1 is released from Schwarzbeck
It is applicable to RI 130 and RI 150

Click the following pictures to jump to datasheet.
